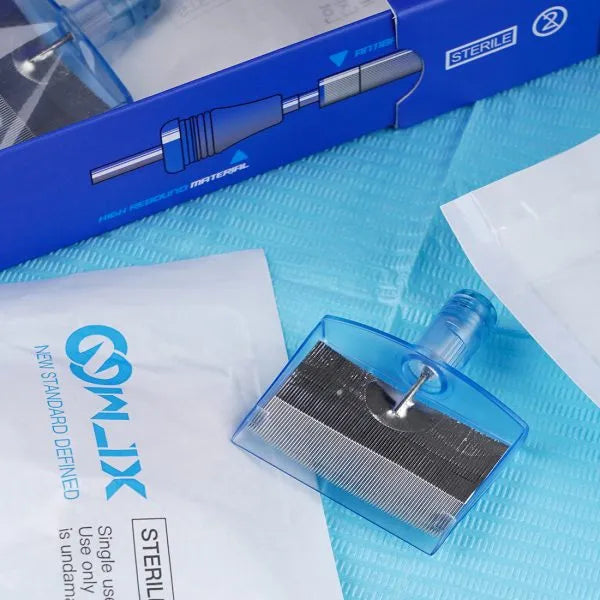

WJX 10143RM Super-Large Curved Magnum Cartridges – Box of 5

Super-large 143-point grouping

The exceptionally wide 143-needle configuration is designed to cover substantially more space than a conventional curved magnum.

#10 / 0.30mm needle diameter

Uses 0.30mm needle points, commonly identified as a #10 or bugpin diameter.

Curved magnum configuration

The round magnum arrangement follows a curved profile rather than the completely straight edge found on a standard magnum.

Designed for substantial areas

Created for large-scale black packing, solid colour, broad shading and other applications requiring extensive coverage.

Ink-guide groove

The nozzle incorporates an ink-guide groove designed to increase ink storage and support steady delivery across the wide grouping.

Stabilising nozzle construction

Arc-shaped limiters and a needle-track system are designed to support stable movement while reducing unnecessary friction inside the cartridge.

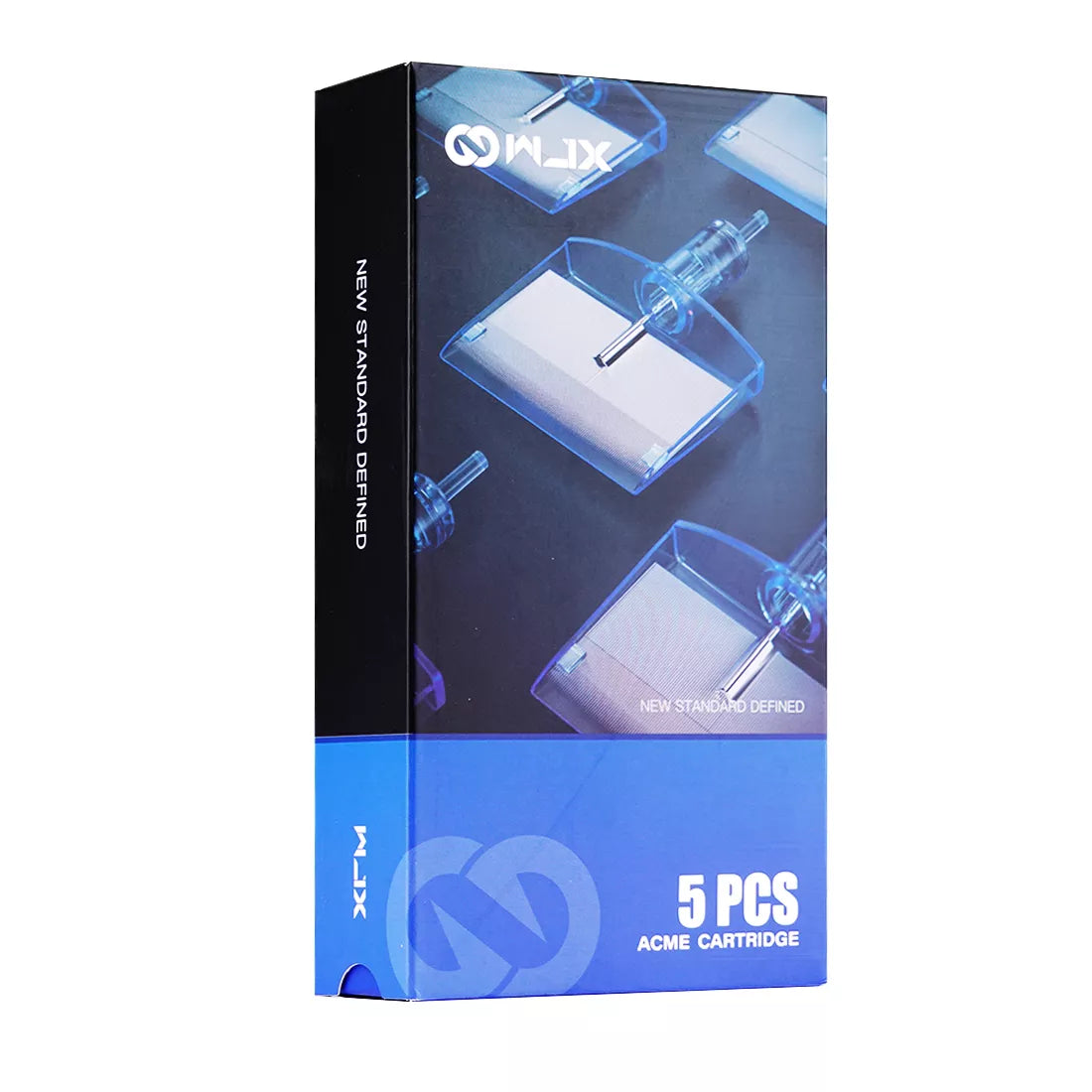

Five-cartridge box

Supplied in a smaller box of five cartridges due to the specialised size of the 10143RM configuration.

10 – Needle diameter

The first two digits indicate a #10 needle diameter, equivalent to approximately 0.30mm.

143 – Number of needle points

Each cartridge contains 143 individual needle points arranged together in one exceptionally large grouping.

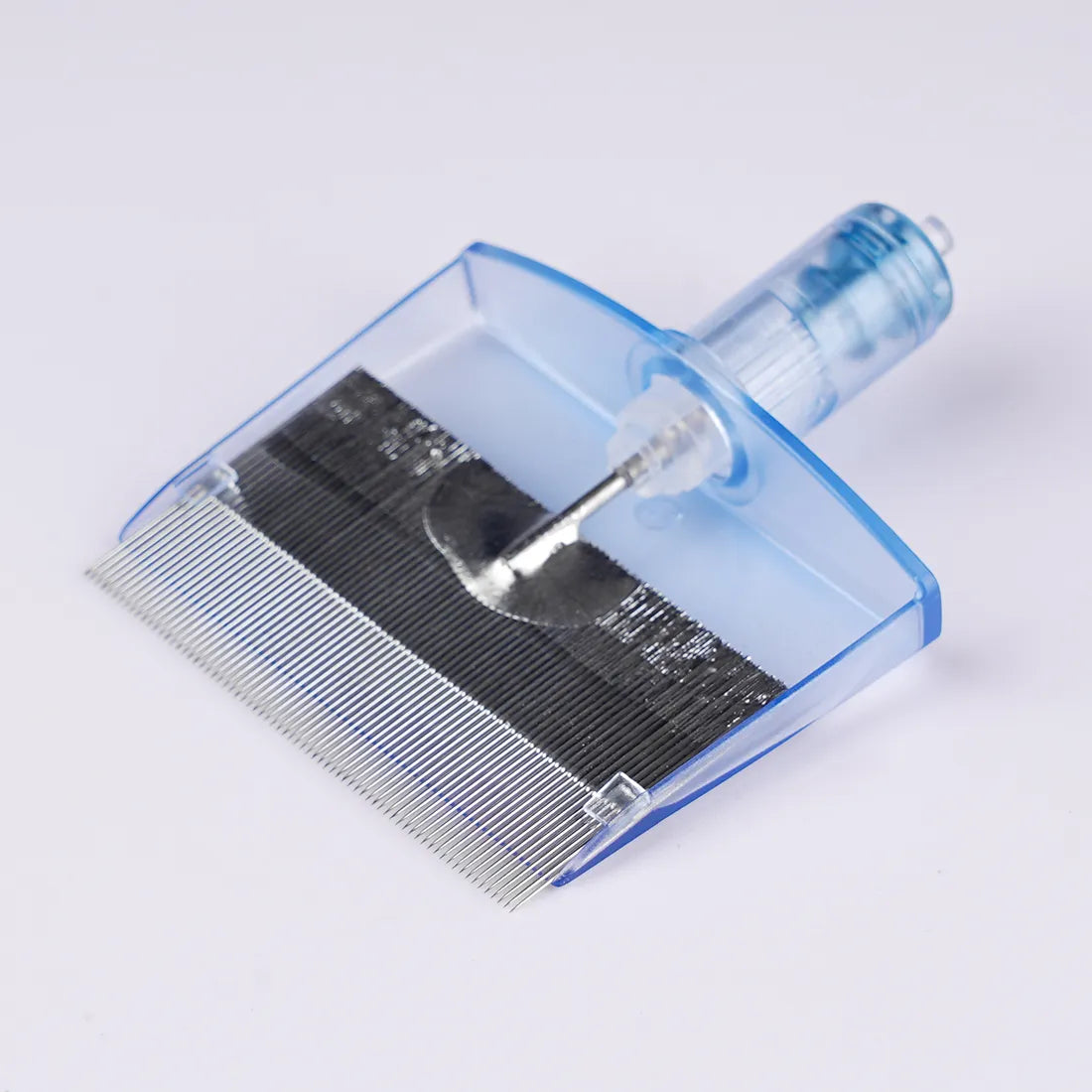

RM – Round Magnum

RM means Round Magnum, also commonly called Curved Magnum. The outer needles follow a rounded profile to create a curved contact edge.

A specialised configuration

This is significantly larger than a standard magnum cartridge and is intended for experienced professional artists familiar with wide needle groupings.

Black packing and blackout work

The 143-point grouping is designed for covering large areas when packing black pigment in suitable large-scale work.

Bold colour saturation

Suitable for substantial colour sections where a wide cartridge can help the artist work across a larger surface area.

Broad shading

The curved magnum arrangement can be used for broad shading and large transitions when paired with the appropriate machine and technique.

Large-scale tattoo projects

A specialist option for expansive designs where conventional magnum sizes would provide considerably less coverage.

Final performance depends on the machine, stroke, power, ink, hand speed and the artist’s technique. No universal operating voltage is specified for this cartridge.

Brushless-motor machine recommended

WJX recommends using its super-large cartridges with a suitably powerful brushless-motor tattoo machine.

Confirm sufficient machine power

A machine accepting cartridge needles does not automatically mean it can drive a grouping of this size correctly. Confirm compatibility and motor capability before purchasing.

Machines listed as incompatible

The manufacturer specifically lists the Mast Archer, Mast Archer Max, Mast Lancer, Mast Lancer 4.2mm and Mast Magi as incompatible with its super-large cartridges.

Other machines

The manufacturer’s incompatibility list may not cover every machine. Check with your machine manufacturer if your model is not clearly approved for super-large cartridge groupings.

Four-elastic rebound system

The internal rebound construction uses four elastic supports designed to reduce pressure from the needle bar and promote quieter movement.

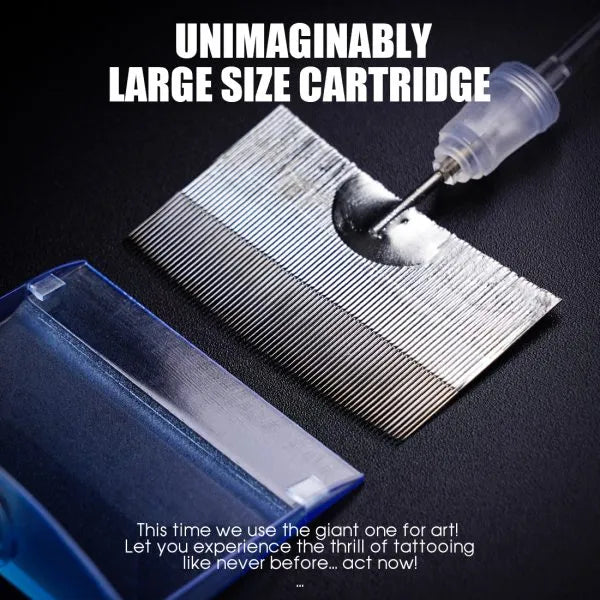

Transparent polycarbonate housing

The cartridge frame is manufactured from transparent PC polycarbonate, allowing the artist to see the needle and ink inside the tip.

Arc-shaped needle guidance

The front section of the nozzle follows the curved profile of the needle grouping to support alignment and controlled movement.

Ground nozzle tip

The front of the nozzle uses a ground design intended to improve ink storage and help control excess ink around the cartridge opening.

Brand

WJX

Product

Super-Large Professional Tattoo Cartridge Needles

Configuration

10143RM

Needle Type

Round Magnum / Curved Magnum

Needle Diameter

#10 / 0.30mm

Needle Count

143 needle points per cartridge

Housing Material

Transparent PC polycarbonate

Recommended Machine Type

Suitably powerful brushless-motor tattoo machine

Best Suited For

Large-scale black packing, colour saturation and broad shading

Quantity

5 cartridges per box

Intended Use

Professional single-use tattoo cartridge

Professional use only

This specialist cartridge is intended for trained professional tattoo artists experienced with large needle groupings.

Check compatibility before opening

Confirm that your tattoo machine can safely and consistently drive the 10143RM configuration before opening the cartridges.

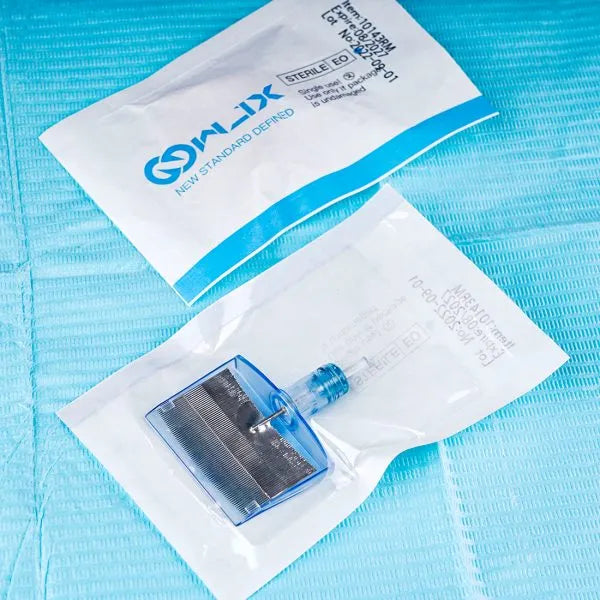

Inspect before use

Do not use a cartridge if its individual wrapper is open or damaged, its expiry date has passed or the cartridge shows visible damage.

Single use only

Never reuse or attempt to reprocess a tattoo needle cartridge. Dispose of it immediately after use in an approved sharps container.

Follow the packaging

Always follow the sterilisation, expiry, storage and usage information printed on the individual cartridge wrapper and product box.

1 x box containing 5 WJX 10143RM Super-Large Curved Magnum Tattoo Cartridges.

What does 10143RM mean?

It identifies a #10 / 0.30mm needle diameter, 143 individual needle points and a Round Magnum or Curved Magnum configuration.

How many cartridges are supplied?

Each box contains five WJX 10143RM cartridges.

What is this cartridge best used for?

It is designed for experienced artists working on substantial black packing, colour saturation, broad shading and large-scale tattoo projects.

Will the 10143RM fit every cartridge machine?

No. Its exceptional size requires a compatible machine with sufficient motor power. WJX recommends a brushless-motor machine and specifically lists several Mast machines as incompatible.

Can I use it with a Mast Archer?

No. The Mast Archer and Archer Max are included in the manufacturer’s list of incompatible machines.

Is this suitable for artists new to magnums?

The 10143RM is a specialised super-large grouping intended for experienced professional artists. Artists unfamiliar with wide magnums should develop their technique using more conventional configurations first.
